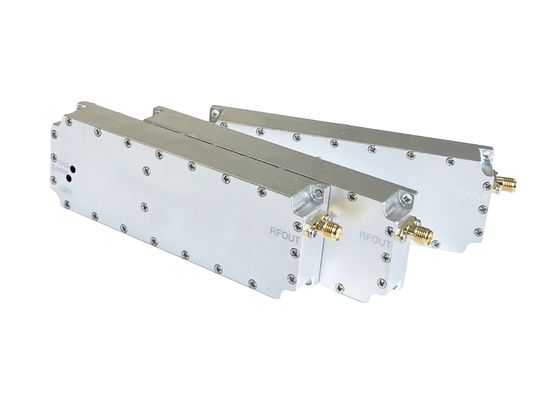

30W 500-600MHz Anti Fpv Drone System Uav Jamming Device RF Power Amplifier Module Anti-Drone Module With GAN And Isolation Protector
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
Product Parameters
Main Components :
1, Adjustable Bandwidth 2, Adjustable Bandwidth 3, Adjustable Driver Tube Voltage
4, Tube Voltage 5, Adjustable GAN Voltage 6, GAN Voltage
1.RF Data
| Item | Spec. | Remarks | ||
| Frequency Range(MHz) | 500-600 | Bandwidth Range±10MHz | ||
| Working Voltage | 28V | 24-30V | ||
| Analog sweeping speed | 250KHz | |||
| Output Power (Max) | ≥44dBm | 30W | ||
| Gain (Max) | 47±1 dB | |||
| Ripple in Band | ≤ 3dB | Peak | ||
| Bandwidth adjustment | Yes | By screw | ||
| Center adjustment | Yes | By screw | ||
| Enable control | Yes | 24-28V | ||
| Output VSWR | ≤3 | |||
| Working current@+28V dc | ≤3A | |||
| High Low Temperature test | Working Temperature | -20~＋65℃ | Working properly | |
| Gain Stability | ±1 dB | at -20℃~+55℃ | ||
| Power stability | ±1 dB | at -20℃~+55℃ | ||
| Power supply Port | Positive and negative lines | 24-28V; GND | ||
| RF output connector | SMA-Female | |||
| LED indicator light | Power ON/OFF | |||
| Dimension | 117*40*18 mm | |||
| Installation Dimension | 112*35*18 mm | |||
| Screw Size | 4-Ø3.20 mm | |||
| Weight | 180g | |||
2.Size
For more details,Please don't hesitate to send us your inquiry.
